RF PCB Manufacturing Capabilities

CAPABILITIES / RF FABRICATION TO ASSEMBLY

A process window.
A clear engineering review.

Match your RF board to the right material, construction and test plan. Our shared RFPCB / PCBSync manufacturing operation brings fabrication, assembly and laboratory support into the same project conversation.

Request an engineering quote Talk to an engineer

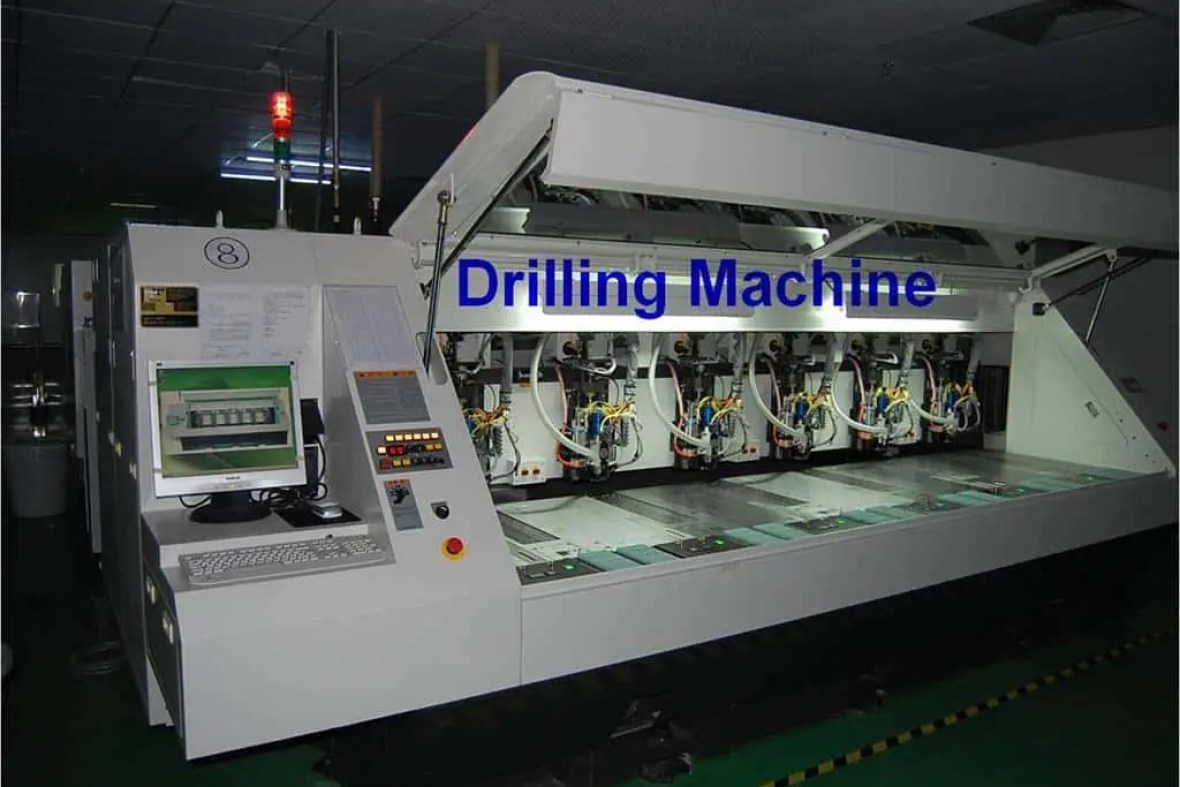

PCB drilling equipment in the shared RFPCB and PCBSync factory — Shared RFPCB / PCBSync facility archive.

Since 2005Shared manufacturing operation

5,000 m²Published Shenzhen facility area

PCB + PCBAFabrication and assembly support

DFM firstReview the actual build before release

Choose the capability your design depends on

Use these process areas to frame the engineering review. The correct combination matters more than selecting the largest number from each specification column.

RF fabrication

High-frequency PCB

Laminate identity, dielectric thickness, copper and RF geometry reviewed as one construction.

View process topic

Cost + integration

Hybrid stackups

Place RF material where it matters and review the bonding system, layer balance and transitions.

View process topic

Electrical geometry

Controlled impedance

Define line type, target, tolerance, reference plane and coupon requirements before release.

View process topic

Layer integration

Multilayer RF boards

Review sequential structures, interconnects and dielectric budgets against the selected materials.

View process topic

Mechanical features

Cavities and back-drill

Discuss depth control, residual stubs, registration and the actual signal transition.

View process topic

RF interfaces

Edge plating & castellations

Identify the plated edges, grounding path, connector interface and outline tolerances.

View process topic

Heat path

Copper and thermal structures

Review copper distribution and thermal paths together with RF loss and mechanical constraints.

View process topic

Conductor surface

RF surface finishes

Choose the finish against solderability, contact requirements and the circuit loss model.

View process topic

Board to assembly

RF PCB assembly

Add the BOM, placement data, assembly drawing and test scope when the project includes PCBA.

View process topic

Manufacturing capability reference

The table below follows the shared factory’s published rigid-PCB process window. It separates mass production from the extended prototype range. These limits are not an automatic promise for every RF laminate or for a design combining several extreme features.

Display capability tier

Parameter	Mass production	Extended prototype	RF engineering condition
Rigid layer count	1–24 layers	1–78 layers	Extended rigid-board range; RF/PTFE stackup approval required.
Line / space	3 / 3 mil	3 / 3 mil	About 0.076 / 0.076 mm; copper and material affect suitability.
Controlled impedance	±10%	±7%	Target, geometry, coupon and measurement method must be agreed.
Copper weight	Up to 4 oz	Up to 12 oz	Not simultaneous with every minimum line/space condition.
Maximum panel	600 × 770 mm	600 × 770 or 500 × 1200 mm	Usable RF area depends on laminate format and process margins.
Maximum board thickness	8.5 mm	8.5 mm	Qualification depends on aspect ratio, material and interconnects.
Published minimum hole	0.1 mm	0.1 mm	Confirm drilled/finished definition, hole type and aspect ratio.
Outline tolerance	±0.15 mm	±0.15 mm	Identify tighter connector or cavity features separately.
PTH / NPTH diameter tolerance	±0.076 / ±0.05 mm	±0.076 / ±0.05 mm	Specify finished dimensions and measurement requirements.

Source: shared factory rigid-PCB capability table, reviewed 24 September 2026. The general capabilities overview lists up to 56 layers; the detailed rigid table lists up to 78 for extended prototypes. Obtain written approval for the specific construction.

For RF and PTFE builds: confirm material thickness, copper foil, hole treatment, bonding system, line geometry, registration, finished tolerance and test coupons together. Availability and a signed-off stackup define the accepted build.

The manufacturing process behind the specification

PCB drilling equipment in the shared manufacturing facility — PCB drilling equipment — factory archive.

Solder mask exposure process in the shared PCB factory — Solder-mask exposure process — factory archive.

PCB materials and process laboratory — Physics and chemistry laboratory — factory archive.

Fabrication control

Imaging, drilling and plating

The shared factory documents LDI, drilling, plating, AOI and electrical-test processes. Request the equipment and process evidence relevant to your critical features.

See factory equipment

Verification

Materials, construction and RF behavior

Microsections, thickness checks and electrical testing answer different questions. Agree additional RF characterization and fixture requirements before ordering.

Define the quality evidence

From fabrication data to a controlled release

For sample wording and a worked approval record, see the RF PCB fabrication notes example. It follows an open RFQ question through supplier proposal, design approval and a consistent manufacturing release.

Submit the actual requirement
Send the revision, Gerber or agreed fabrication format, drill data, outline, stackup and quantity. Add assembly files if PCBA is included.
Resolve engineering questions
Confirm laminate, tolerances, impedance geometry, special features, coupons and any approved substitutions before production release.
Agree acceptance and delivery
Define inspection and test outputs, packaging and schedule in the quotation. Prototype acceptance becomes the baseline for repeat orders.

Is your fabrication package ready for review?

Select what is ready. This checklist runs locally and does not upload files or place an order.

Fabrication files and revisionLayer-by-layer stackup and exact laminateCopper, finish and mechanical tolerancesImpedance targets and required testsQuantity and delivery requirement

Select the items available for review.

Editable review summarySend the summary with your enquiry

Send the difficult part of the design.

A cavity, a hybrid bond, a narrow RF line or a demanding transition: identify the feature that controls the build and include it in your enquiry.

Upload files for review Discuss the project first
