Antenna PCB

What is an antenna PCB?

An antenna PCB incorporates a printed radiator, a feed network, or the supporting circuitry for an antenna system. A patch, slot, printed monopole and array feed are different structures with different design constraints. The board can be an active RF assembly or a passive radiating structure, so the manufacturing package should identify which functions are included.

A good antenna board is not defined by a laminate brand alone. Geometry, ground size, nearby metal, connector launch, solder mask and enclosure material can change the response. Define the intended operating band, polarization, matching target, radiation pattern and the conditions under which those requirements will be measured.

Choose a material with the field distribution in mind

The dielectric constant and thickness influence the size and electrical behavior of a printed antenna. Loss, copper roughness and finish can affect efficiency, while variation in geometry and material can shift the response between builds. The relevant value in a design model may differ from a datasheet process Dk, so record the model and its source.

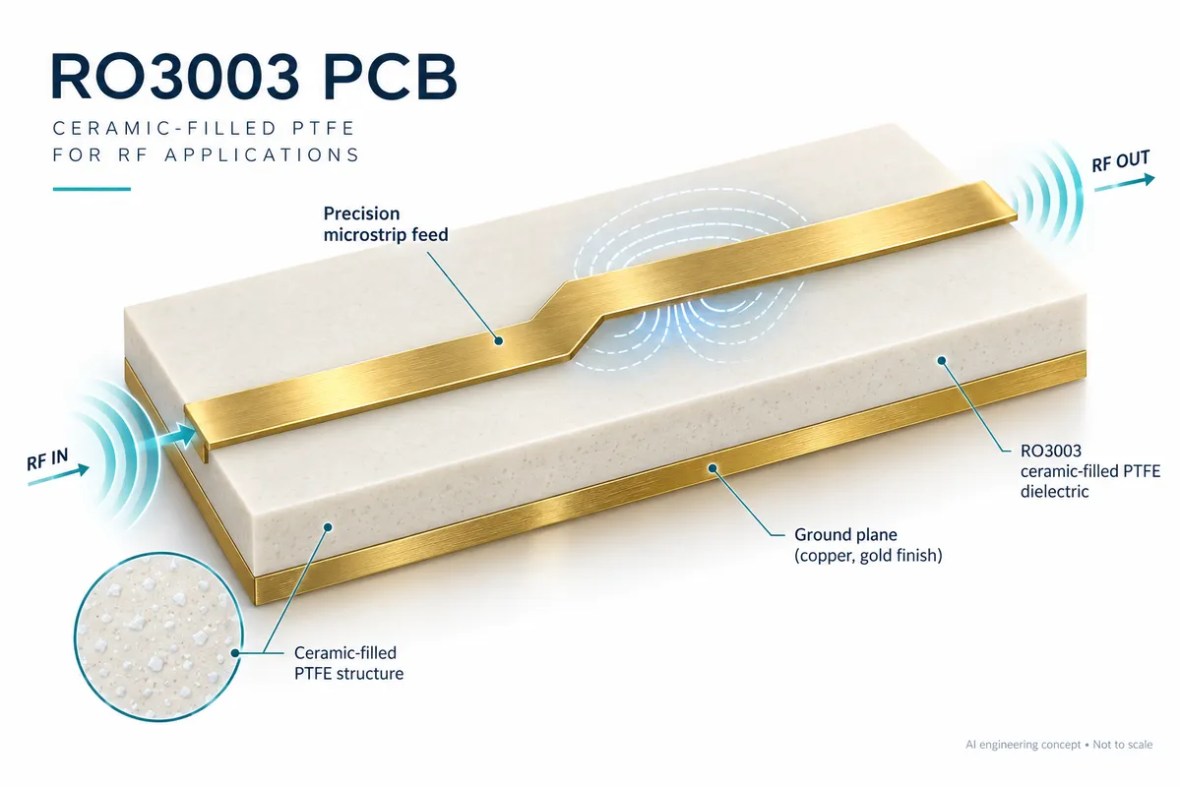

RO4350B, RO4003C and RO3003 are candidates to assess, not a ranked list that applies to every antenna. Compare the actual electrical need, available thickness, foil option, assembly environment and cost. Use the material selection guide to document the decision.

Understand the application interfaces

Control the feed and the installation environment

An antenna’s feed reference plane should be unambiguous. If the acceptance measurement begins at a connector, the launch and connector are part of the measured network unless they are properly removed by calibration or de-embedding. A nominal 50-ohm trace does not by itself establish a 50-ohm antenna match over the operating band.

Provide board-edge clearances, keepouts, ground and mounting details, and the final enclosure or radome model where relevant. A tuned bare-board prototype can shift after assembly into a product. Battery position, cables, shielding and mounting hardware may change the environment. Freeze these interfaces or plan a controlled tuning stage before production release.

Validate matching and radiation separately

Return loss describes reflected power at a defined port. Radiation efficiency, gain, polarization and the angular pattern require their own evaluation. An antenna can be well matched and still dissipate substantial power or radiate in an unsuitable direction. Specify the measurements that correspond to the product requirement rather than treating one attractive S11 plot as complete acceptance.

The wavelength explorer below illustrates electrical scale. It does not calculate the final dimensions of a patch or a printed monopole, because fringing fields, ground geometry and the installation environment change resonance. Use electromagnetic simulation and a representative prototype for final tuning. The impedance review supports feed construction while the RF test plan supports antenna acceptance.

Application-to-manufacturing review

Connect these requirements to the Controlled Impedance PCB Manufacturing workflow. The approved stackup, drawing and order-specific acceptance plan define the build.

Build the acceptance plan around the application

Decide what the bare board must demonstrate and what belongs to the assembled product. Continuity testing, an impedance coupon, a calibrated RF network measurement and an installed-system test are different forms of evidence. None should silently stand in for another. Identify the required report, coverage, limits and review responsibility before the quotation is accepted.

Record the test configuration alongside the result: board revision, material construction, fixture, calibration, firmware or device settings, temperature and the relevant operating point. When comparing prototypes, keep these conditions consistent or explain the difference. A changed connector, cable or reference plane can make an apparent board improvement difficult to interpret.

For production, agree how first-article findings become controlled manufacturing requirements. Identify which dimensions and material choices are critical, what may be adjusted by engineering, and which changes require renewed validation. A repeat order should reference the approved revision and test plan rather than rely on a previous email description.

Visit quality and test evidence for supplier qualification and reporting questions. Where a customer program requires certificates or sector-specific approval, request the actual documents and applicable scope. An application example is not a product certification or a substitute for the customer’s acceptance process.

Prepare a quotation that engineering can review

A useful RF PCB quotation starts with a controlled design package. Send Gerber or an agreed manufacturing format, NC drill data, a dimensioned outline, the board revision and a stackup drawing. Add quantity, delivery destination and the requested schedule. If some details are still open, mark them explicitly instead of letting a drawing, an email and a file name imply different requirements.

Separate mandatory requirements from preferences. A specified laminate, a customer-approved alternative and a request for a recommendation are three different purchasing instructions. State whether the supplier may propose changes to dielectric thickness, line geometry, panelization or finish, and who approves those changes. Changes that affect RF behavior should return to the design owner before release.

From review to repeatable production

1. Agree the build

   Engineering reviews material, geometry, mechanical features and test requirements. Open questions and proposed changes are documented. The approved drawing and stackup become the manufacturing baseline.

2. Verify the first build

   Define which records are needed for the prototype: electrical test, impedance, dimensional inspection, cross-sections or an agreed RF measurement. Evaluate the evidence against the relevant acceptance criteria.

3. Control later changes

   Keep revision, material substitutions, process changes and test updates traceable. A successful prototype is the starting point for production control, not permission to change the construction silently.

For a performance issue, retain the board revision, lot reference, measurement setup and operating conditions. Comparing repeatable measurements is more useful than comparing screenshots taken with different fixtures or calibration. Define the investigation and disposition with the supplier using the actual order requirements.

Real manufacturing and laboratory context

These photographs are from the shared RFPCB / PCBSync facility archive. They show manufacturing and laboratory areas, not a claim that a pictured item is a certified antenna PCB product. Review the actual process and report requirements with the team.

Antenna PCB Design & Manufacturing: common questions

Related application decisions

Technical references and scope

Use current component and material documentation together with the approved design. The sources below provide engineering context; the specific product and manufacturing acceptance requirements remain project-dependent.
