Arlon PCB: material data and model assumptions

Values above are material references, not guaranteed finished-board performance. Consult the linked manufacturer document and confirm its revision for procurement. Source review: 24 September 2026.

Engineering decisions for Arlon PCB

Why the exact Arlon designation matters

Start with the drawing callout rather than the brand search term. Current Rogers AD-series RF materials and the separate Arlon Electronic Materials business have different product histories and documentation. A board described only as Arlon PCB can therefore conceal a material-system mismatch. Ask for a quotation that repeats the complete grade and construction, and retain the applicable datasheet. For an existing qualified design, treat changes in manufacturer identity, laminate family or copper construction as engineering review items.

Process Dk and design Dk serve different roles

The AD-series datasheet illustrates why two dielectric constants can both be useful without being interchangeable. AD255C lists process Dk 2.55 and design Dk 2.60; AD300D lists process Dk 2.97 and design Dk 2.94. Process values support material characterization under the specified method, while design values support the documented circuit modeling approach. Do not automatically put a process acceptance value into every solver. Record which value is used, check the method, and validate critical structures against the manufactured construction.

Handle historical 25N information carefully

Historical 25N documentation describes a ceramic-filled nonpolar thermoset resin with woven-glass reinforcement. That composition differs from the PTFE AD-series examples. The archived document reports Dk 3.38 and Df 0.0025 at 10 GHz, but a dated document cannot confirm current inventory or purchasing terms. Confirm availability and the exact replacement proposal if the original material is unavailable. Review flame classification independently; a similarly named 25FR product does not make a 25N construction equivalent.

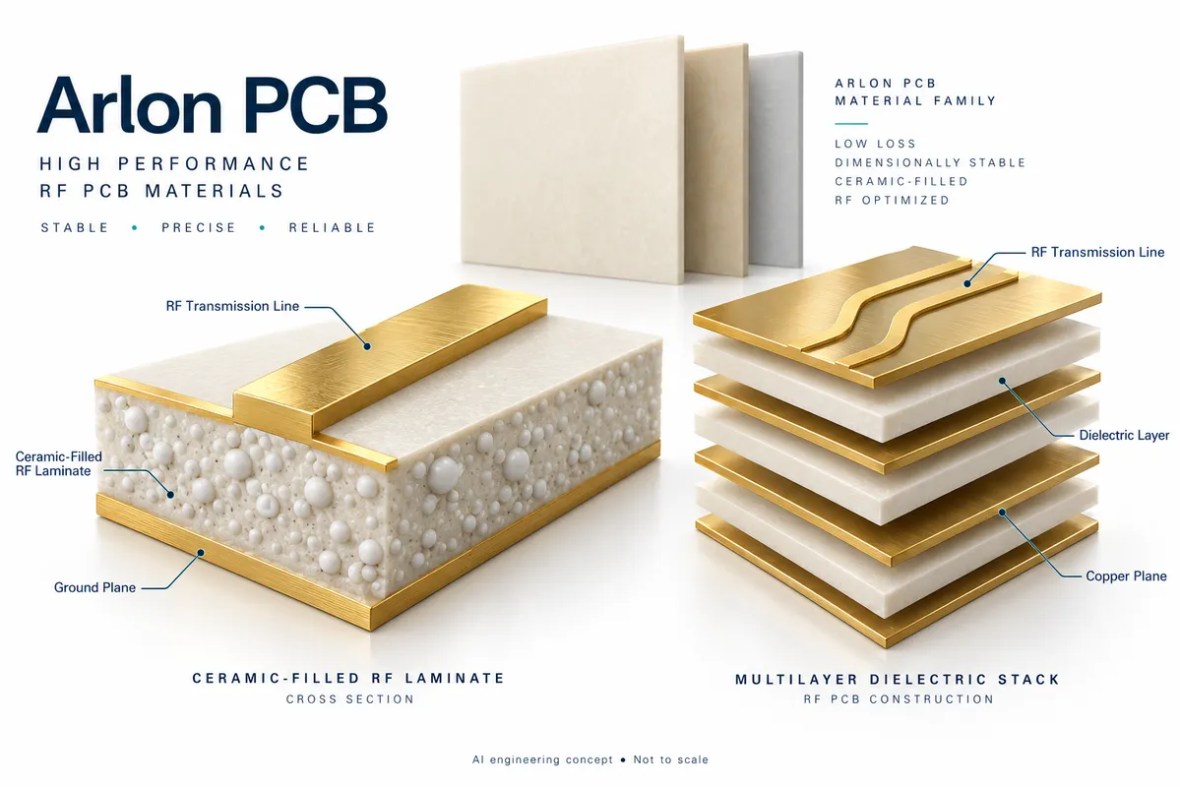

Antenna performance requires a build specification

For an antenna or microwave feed, connect material choice to conductor geometry, ground continuity and launch details. Specify foil, finished copper, dielectric thickness and tolerances before freezing the layout. If low PIM, insertion loss or phase stability is a requirement, state the acceptance level and test method explicitly. These properties involve the completed assembly and interfaces. A laminate label alone cannot certify them. Include relevant coupons and assembly conditions in first-article review so purchasing and engineering share the same definition of an acceptable board.

Real RF board references

The following photographs are from the RFPCB site archive. They show manufactured RF structures and hybrid boards. They are visual manufacturing references, not proof that every pictured board uses the material discussed on this page.

Arlon PCB design and cost tools

Adjust assumptions, compare scenarios and build a clear enquiry. Calculations run in your browser. Grade presets only change the Dk input; they do not set material prices, certify a construction or select a manufacturing process.

Design workflow: from Dk to a manufacturable line

Begin with the distance from the RF trace to its reference plane, not the total finished-board thickness. Enter that dielectric height in millimetres and choose the dielectric constant appropriate to the confirmed material model. In target mode, the calculator solves a width for the requested impedance. In analysis mode, it estimates impedance from a width you enter. Change one assumption at a time to understand which dimensions are sensitive before committing the layout.

The solver uses a zero-copper-thickness Hammerstad–Jensen quasi-static microstrip approximation. It represents an isolated, uncoated trace over a continuous ground plane. It does not include solder mask, finite copper thickness, roughness, frequency dispersion, neighboring traces, coplanar grounds, via fences or connector launches. Frequency changes the wavelength output, while this model’s impedance remains quasi-static. A production field solver and a fabricator-approved stackup are needed for final controlled-impedance dimensions.

Use the delay and quarter-wavelength outputs as early electrical-length estimates. They do not replace a filter or antenna simulation. Resonant structures also respond to discontinuities, fringing fields, enclosure proximity and fabrication tolerance. For a sensitivity check, vary dielectric height and Dk over the confirmed tolerances and compare the resulting trace widths. Keep those ranges with the drawing instead of reporting a calculated width with unrealistic manufacturing precision.

Plan the stackup as a complete construction

The thickness planner adds the total selected RF dielectric, all other pressed dielectrics and equal copper thickness for each layer. Enter every core, bondply and prepreg contribution exactly once. For two copper layers, the model uses only the RF dielectric and copper. The output excludes solder mask and surface finish. It is a nominal arithmetic budget, not a prediction of resin flow, press shrinkage or an approved multilayer construction.

Before fabrication, ask for the actual layer sequence, material identifiers, pressed dielectric thicknesses, copper weights and tolerances. Review whether reference planes remain continuous beneath critical routes. Identify any blind, buried or through-hole transitions that need separate electrical or reliability evaluation. A total thickness that fits a connector does not by itself establish impedance, bond compatibility or layer balance. Review those requirements together with the proposed manufacturing process.

Cost and quotation: expose the assumptions

A useful early budget shows what drives the number. Board outline, usable panel size, spacing, ordered quantity and expected yield determine how many full panels the example allocates. The calculator compares a uniform zero-degree layout with a uniform ninety-degree layout and uses the better result. It does not perform mixed-orientation nesting, optimize irregular outlines or reserve tooling rails and coupons automatically. Enter the usable area after those manufacturing reservations.

Material cost is the amount allocated to all laminate in one usable panel. Fabrication cost applies to every board position started on the allocated panels, while testing cost applies to the ordered quantity. Setup is added once. These assumptions deliberately remain visible and editable. The displayed dollar figure is a scenario based on your inputs, not a live supplier price, availability statement or purchasing commitment. Shipping, taxes and assembly are excluded.

For a fair quotation comparison, hold the material grade, foil, stackup, finish, quantity, tolerances and tests constant. A low unit price may cover a different inspection plan or construction. Record any acceptable alternatives explicitly and request approval before substitution. Compare prototype and production quantities separately because setup allocation and panel utilization can change the effective unit cost. Enter confirmed supplier rates when available and rebuild the summary after changing the design.

What a complete RFQ should include

Send the fabrication data, NC drill, board outline and revision together with a layer-by-layer stackup. Include the manufacturer and exact laminate grade, dielectric thickness and tolerance, copper type, finished copper, finish and material substitution restrictions. Identify controlled-impedance nets and target tolerances. State whether the project also needs insertion loss, return loss, phase or other RF acceptance measurements, because these are separate deliverables with their own fixtures and coupons.

Specify the order quantity, panel preferences, delivery destination and required schedule. If the design is still evolving, identify which dimensions or materials remain open to engineering review. The summary button below collects valid calculator scenarios into editable text; it does not transmit your design or submit an order. Review that text, attach the actual manufacturing package and use the quotation form for a build-specific response.
