Carry the RF requirement into every drawing.
Use a practical sequence from requirements and material modeling to layout, manufacturing review and test. Build a project brief, copy the checklist and print the guide for your design review.
Build your RF design review brief
Choose the dominant circuit and project stage. Combine the generated priorities with the checklist later on this page. No files are uploaded by this tool.
The print button opens your browser print dialog. Choose Save as PDF if available. This is the current web guide, not a separate certified design document.
1. Write the electrical requirement before selecting a material
Define the operating band, bandwidth, circuit function, signal levels and the allowable loss, phase or matching behavior. Identify which requirements belong to the bare board and which belong to an assembled or installed product. This distinction helps prevent a coupon result from becoming an unsupported claim about an antenna, amplifier or radio.
State the mechanical and environmental constraints at the same time. An enclosure, mounting interface, thermal path or assembly process can affect the construction choice. Use the application guides to identify the relevant interfaces, then record the actual project values and acceptance conditions.
2. Select a documented material model and stackup
Choose exact grades, thicknesses, copper options and bonding materials. Keep the source of dielectric data with the model, including frequency, method and revision. Separate a process specification from a design-model value and from effective permittivity. Use the comparison table to locate sources, not to bypass the detailed datasheet.
Assign layer functions before routing critical nets. Use the stackup concepts as a starting point, then request a manufacturable construction. The exact arrangement of dielectric and reference planes determines which model is appropriate for each trace. A hybrid design also needs named bonding materials and a reviewed process sequence.
3. Route the signal and its return path
Identify the reference for each controlled route and maintain a suitable return path across transitions. Review the connector launch, via barrel, unused stub and neighboring structures as part of the network. Avoid treating a nominal line impedance as proof that every transition is well matched.
For digital control and clock routes on the same board, compare the fastest edge with propagation delay before choosing a lumped model. The rise-time and trace-delay worksheet provides calculated examples and explains when a more detailed transmission-line review is needed.

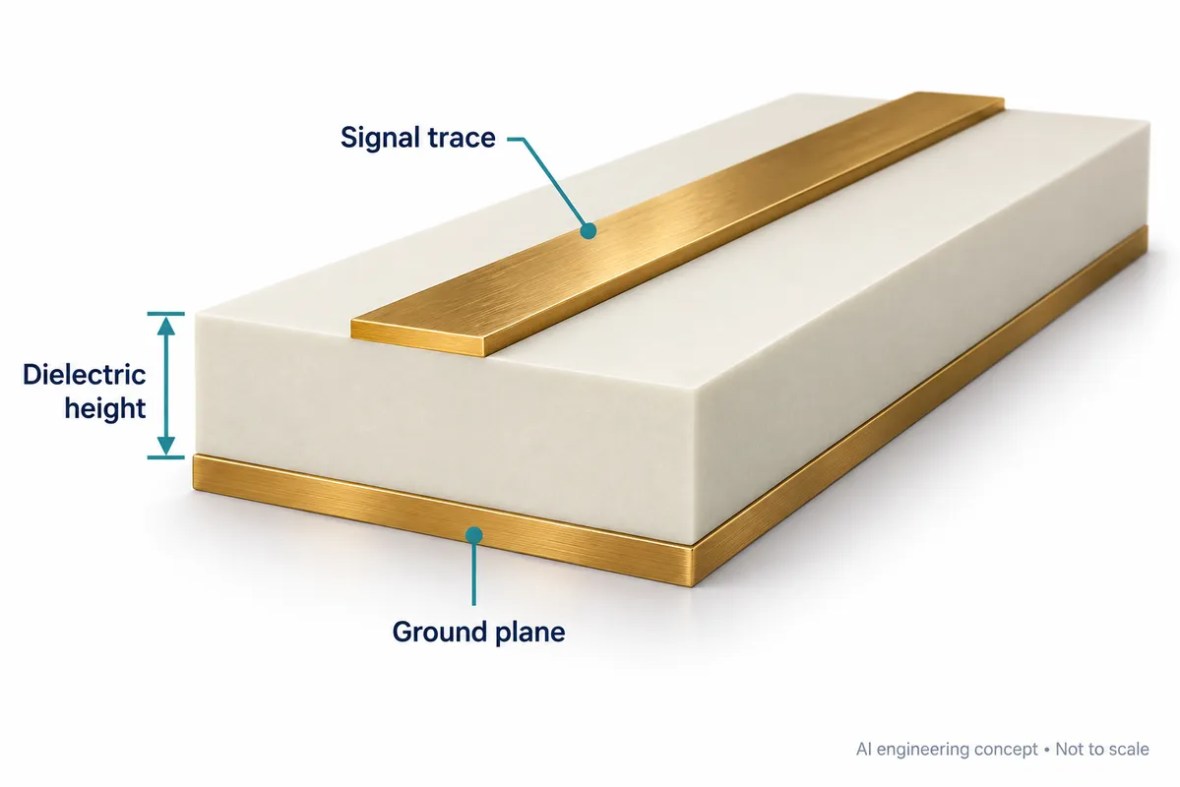

Use the microstrip calculator only where its assumptions fit. For other geometries, use an appropriate field solver and fabrication review. Include solder mask, copper thickness, finish and actual etch geometry in the production model where relevant. Document any tuning allowance and who can approve a geometry change.
4. Build a loss budget with consistent boundaries
List the components of the RF path and their reference planes. Distinguish a dielectric-loss estimate, a modeled line loss and a measured assembled network. The loss-budget tool exposes this distinction and helps avoid adding the same connector or fixture term twice.
For repeated channels, include amplitude and phase consistency. For a printed antenna, define the installation environment and radiation evidence. For a power amplifier, connect bias, RF operating point and the cooling interface. Use the appropriate application page to expand the requirements rather than applying the same checklist blindly to every circuit.
5. Freeze the manufacturing and assembly package
Submit coherent fabrication, drill, outline, stackup and assembly files with one revision. Label controlled nets, special mechanical features, finish regions and acceptance criteria. For assembly, include MPNs, placement data, orientation, DNP information, firmware and the agreed test responsibilities.
Resolve DFM and DFA questions before release. A proposed material or thickness change can require an electrical-model update, even if it improves manufacturing convenience. Use the candidate tool only as a screening step within that approval process.
6. Verify, learn and control changes
Plan fixtures, calibration, test coverage and pass limits before the prototype arrives. Record the construction and operating conditions with the results. If the measured response differs from the model, compare the actual geometry, material assumptions, transitions and measurement boundaries systematically.
Carry the accepted prototype findings into production controls. Keep approved alternatives, reports, revisions and test procedures traceable. A completed checklist helps organize the review but is not a guarantee of manufacturability, compliance or RF performance. The design owner and supplier should agree the specific release criteria.
Keep the engineering assumptions connected
Build the acceptance plan around the application
Decide what the bare board must demonstrate and what belongs to the assembled product. Continuity testing, an impedance coupon, a calibrated RF network measurement and an installed-system test are different forms of evidence. None should silently stand in for another. Identify the required report, coverage, limits and review responsibility before the quotation is accepted.
Record the test configuration alongside the result: board revision, material construction, fixture, calibration, firmware or device settings, temperature and the relevant operating point. When comparing prototypes, keep these conditions consistent or explain the difference. A changed connector, cable or reference plane can make an apparent board improvement difficult to interpret.
For production, agree how first-article findings become controlled manufacturing requirements. Identify which dimensions and material choices are critical, what may be adjusted by engineering, and which changes require renewed validation. A repeat order should reference the approved revision and test plan rather than rely on a previous email description.
Visit quality and test evidence for supplier qualification and reporting questions. Where a customer program requires certificates or sector-specific approval, request the actual documents and applicable scope. An application example is not a product certification or a substitute for the customer’s acceptance process.
Prepare a quotation that engineering can review
A useful RF PCB quotation starts with a controlled design package. Send Gerber or an agreed manufacturing format, NC drill data, a dimensioned outline, the board revision and a stackup drawing. Add quantity, delivery destination and the requested schedule. If some details are still open, mark them explicitly instead of letting a drawing, an email and a file name imply different requirements.
Separate mandatory requirements from preferences. A specified laminate, a customer-approved alternative and a request for a recommendation are three different purchasing instructions. State whether the supplier may propose changes to dielectric thickness, line geometry, panelization or finish, and who approves those changes. Changes that affect RF behavior should return to the design owner before release.
What affects the price?
Board area and panel utilization, quantity, material availability, stackup complexity, drilling and plating, special mechanical features, inspection and test all influence cost. Tight tolerances can also change the achievable yield and process route. An online estimate cannot account for every interaction in an unusual construction.
Use the panel and material cost tool to explore the assumptions it exposes, then request a reviewed quotation. Confirm tooling or setup charges, engineering changes, shipping, taxes and the included report package in the commercial offer.
What affects delivery?
Material stock, engineering clarification, special tooling, lamination cycles and the agreed inspection plan can affect the schedule. Assembly adds component procurement, stencil preparation, programming and fixture readiness. The requested date is a planning input until the supplier confirms the complete order scope.
The website’s response-time target describes enquiry handling. It is not a guarantee that a complex RF build can be priced, fabricated or delivered within the same period. Ask the team to identify the critical dependencies for your project.
From review to repeatable production
Agree the build
Engineering reviews material, geometry, mechanical features and test requirements. Open questions and proposed changes are documented. The approved drawing and stackup become the manufacturing baseline.
Verify the first build
Define which records are needed for the prototype: electrical test, impedance, dimensional inspection, cross-sections or an agreed RF measurement. Evaluate the evidence against the relevant acceptance criteria.
Control later changes
Keep revision, material substitutions, process changes and test updates traceable. A successful prototype is the starting point for production control, not permission to change the construction silently.
For a performance issue, retain the board revision, lot reference, measurement setup and operating conditions. Comparing repeatable measurements is more useful than comparing screenshots taken with different fixtures or calibration. Define the investigation and disposition with the supplier using the actual order requirements.
