Engineering decisions for Wangling F4B PCB

Resolve the family name first

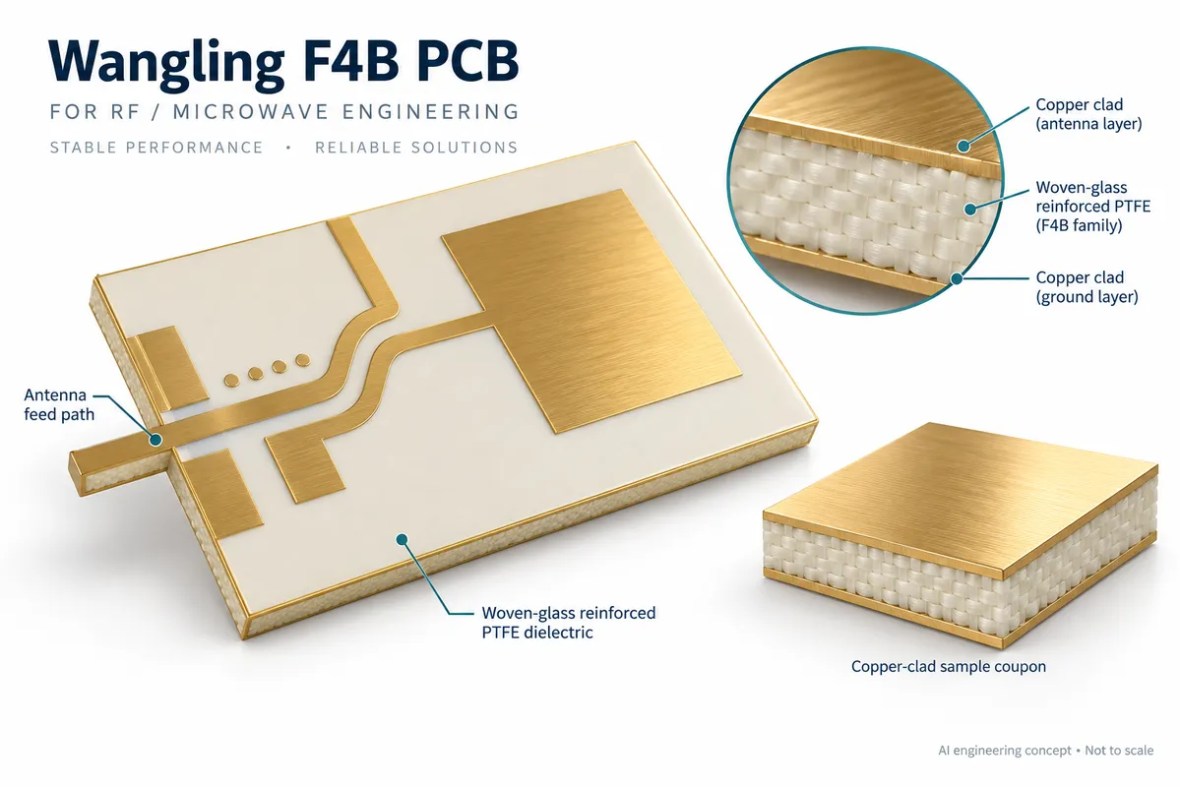

Treat a request for Wangling F4B as the beginning of material selection. Confirm whether the design calls for legacy F4B, F4BM or F4BME, then obtain the complete suffix. Wangling identifies original F4B as its earlier PTFE woven-glass construction and recommends later BM and BME products for improved performance and stability. Existing qualified designs still need controlled substitution review before moving to a newer member of the family. A supplier recommendation should become a documented proposal rather than an unrecorded purchasing substitution.

Select against geometry and tolerance

A design using F4BM220 and one using F4BM265 will not have identical transmission-line dimensions simply because both contain PTFE and glass. Identify nominal Dk, tolerance, test frequency and loss factor for the exact suffix in the stackup record. If a different grade is offered, rerun the impedance and resonant-structure models. For sensitive circuits, compare measured response on a coupon representing production copper and dielectric construction. Do not assign a verified BM value to an unspecified legacy F4B board.

Copper choice belongs in the RF specification

F4BM and F4BME differ in their copper offering even when the dielectric suffix matches. Wangling associates BM with ED foil and BME with reverse-treated RTF foil. Ask which copper construction is offered and how surface characteristics enter the loss estimate. For an antenna feed or passive network with a PIM requirement, define the test setup and acceptance level explicitly. A foil description alone does not certify the completed assembly, connector interface or fabricated conductor geometry.

Compare cost without assuming a universal saving

Evaluate the commercial case using like-for-like quotations. Compare finished stackup, thickness tolerance, copper, testing, quantity and delivery commitment before attributing a price difference to the laminate brand. Avoid a universal percentage-saving claim or unsupported maximum operating frequency. A useful first article establishes the behavior that matters to the product, including loss or phase where necessary. Keeping the exact grade and approved construction in procurement documents makes later orders easier to compare with the qualified prototype and reduces substitution ambiguity.

Real RF board references

The following photographs are from the RFPCB site archive. They show manufactured RF structures and hybrid boards. They are visual manufacturing references, not proof that every pictured board uses the material discussed on this page.

Wangling F4B PCB design and cost tools

Adjust assumptions, compare scenarios and build a clear enquiry. Calculations run in your browser. Grade presets only change the Dk input; they do not set material prices, certify a construction or select a manufacturing process.

Design workflow: from Dk to a manufacturable line

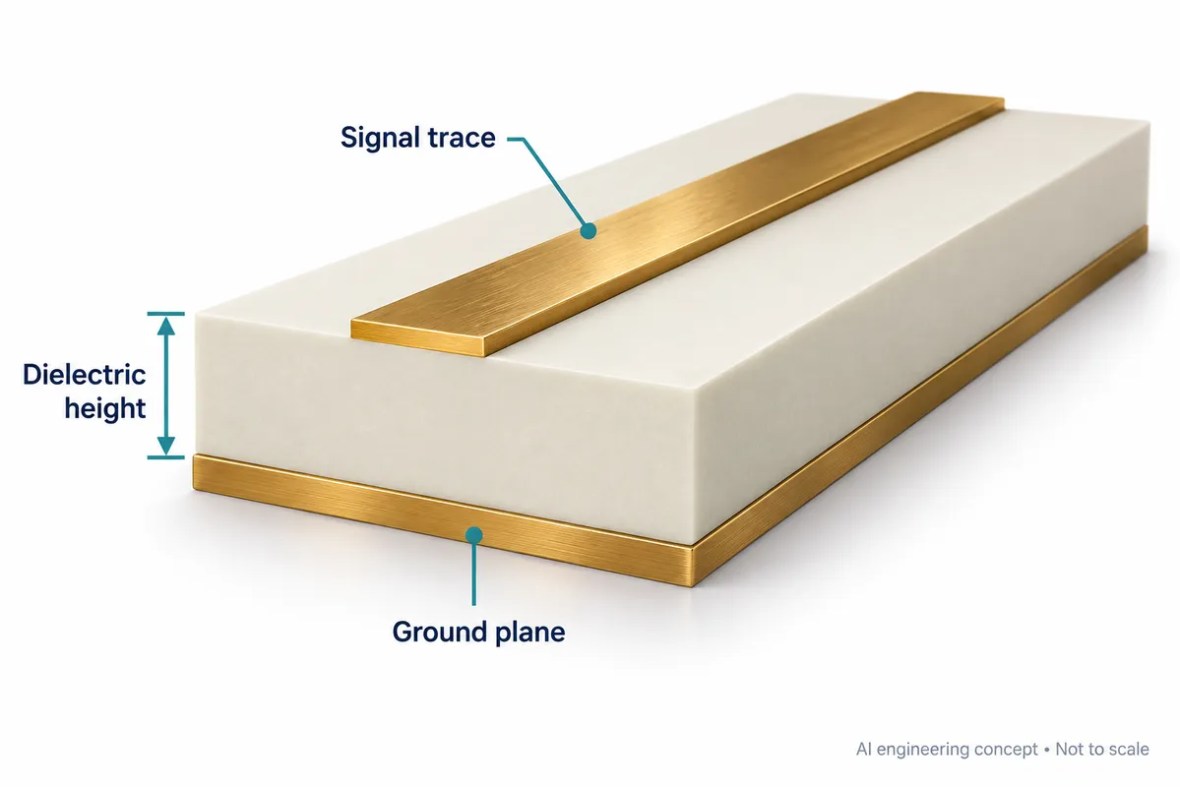

Begin with the distance from the RF trace to its reference plane, not the total finished-board thickness. Enter that dielectric height in millimetres and choose the dielectric constant appropriate to the confirmed material model. In target mode, the calculator solves a width for the requested impedance. In analysis mode, it estimates impedance from a width you enter. Change one assumption at a time to understand which dimensions are sensitive before committing the layout.

The solver uses a zero-copper-thickness Hammerstad–Jensen quasi-static microstrip approximation. It represents an isolated, uncoated trace over a continuous ground plane. It does not include solder mask, finite copper thickness, roughness, frequency dispersion, neighboring traces, coplanar grounds, via fences or connector launches. Frequency changes the wavelength output, while this model’s impedance remains quasi-static. A production field solver and a fabricator-approved stackup are needed for final controlled-impedance dimensions.

Use the delay and quarter-wavelength outputs as early electrical-length estimates. They do not replace a filter or antenna simulation. Resonant structures also respond to discontinuities, fringing fields, enclosure proximity and fabrication tolerance. For a sensitivity check, vary dielectric height and Dk over the confirmed tolerances and compare the resulting trace widths. Keep those ranges with the drawing instead of reporting a calculated width with unrealistic manufacturing precision.

Plan the stackup as a complete construction

The thickness planner adds the total selected RF dielectric, all other pressed dielectrics and equal copper thickness for each layer. Enter every core, bondply and prepreg contribution exactly once. For two copper layers, the model uses only the RF dielectric and copper. The output excludes solder mask and surface finish. It is a nominal arithmetic budget, not a prediction of resin flow, press shrinkage or an approved multilayer construction.

Before fabrication, ask for the actual layer sequence, material identifiers, pressed dielectric thicknesses, copper weights and tolerances. Review whether reference planes remain continuous beneath critical routes. Identify any blind, buried or through-hole transitions that need separate electrical or reliability evaluation. A total thickness that fits a connector does not by itself establish impedance, bond compatibility or layer balance. Review those requirements together with the proposed manufacturing process.

Cost and quotation: expose the assumptions

A useful early budget shows what drives the number. Board outline, usable panel size, spacing, ordered quantity and expected yield determine how many full panels the example allocates. The calculator compares a uniform zero-degree layout with a uniform ninety-degree layout and uses the better result. It does not perform mixed-orientation nesting, optimize irregular outlines or reserve tooling rails and coupons automatically. Enter the usable area after those manufacturing reservations.

Material cost is the amount allocated to all laminate in one usable panel. Fabrication cost applies to every board position started on the allocated panels, while testing cost applies to the ordered quantity. Setup is added once. These assumptions deliberately remain visible and editable. The displayed dollar figure is a scenario based on your inputs, not a live supplier price, availability statement or purchasing commitment. Shipping, taxes and assembly are excluded.

For a fair quotation comparison, hold the material grade, foil, stackup, finish, quantity, tolerances and tests constant. A low unit price may cover a different inspection plan or construction. Record any acceptable alternatives explicitly and request approval before substitution. Compare prototype and production quantities separately because setup allocation and panel utilization can change the effective unit cost. Enter confirmed supplier rates when available and rebuild the summary after changing the design.

What a complete RFQ should include

Send the fabrication data, NC drill, board outline and revision together with a layer-by-layer stackup. Include the manufacturer and exact laminate grade, dielectric thickness and tolerance, copper type, finished copper, finish and material substitution restrictions. Identify controlled-impedance nets and target tolerances. State whether the project also needs insertion loss, return loss, phase or other RF acceptance measurements, because these are separate deliverables with their own fixtures and coupons.

Specify the order quantity, panel preferences, delivery destination and required schedule. If the design is still evolving, identify which dimensions or materials remain open to engineering review. The summary button below collects valid calculator scenarios into editable text; it does not transmit your design or submit an order. Review that text, attach the actual manufacturing package and use the quotation form for a build-specific response.

Wangling F4B PCB questions

Compare related material choices

Continue the selection using the pages most relevant to the alternative construction: Taconic PCB, PTFE / Teflon PCB, RF PCB Material Selection Guide. For thermoset RF alternatives, review RO4003C PCB and RO4350B PCB with their own design data and manufacturing requirements.
