Introduction to the Arduino Mega2560

The Arduino Mega2560 is a powerful and versatile microcontroller board that has captured the hearts of hobbyists, developers, and engineers alike. With its sleek design and impressive capabilities, this board is not only a workhorse but also a true eye-candy in the world of electronics. In this article, we’ll explore the features, specifications, and applications of the Arduino Mega2560, and discover why it’s the perfect choice for your next project.

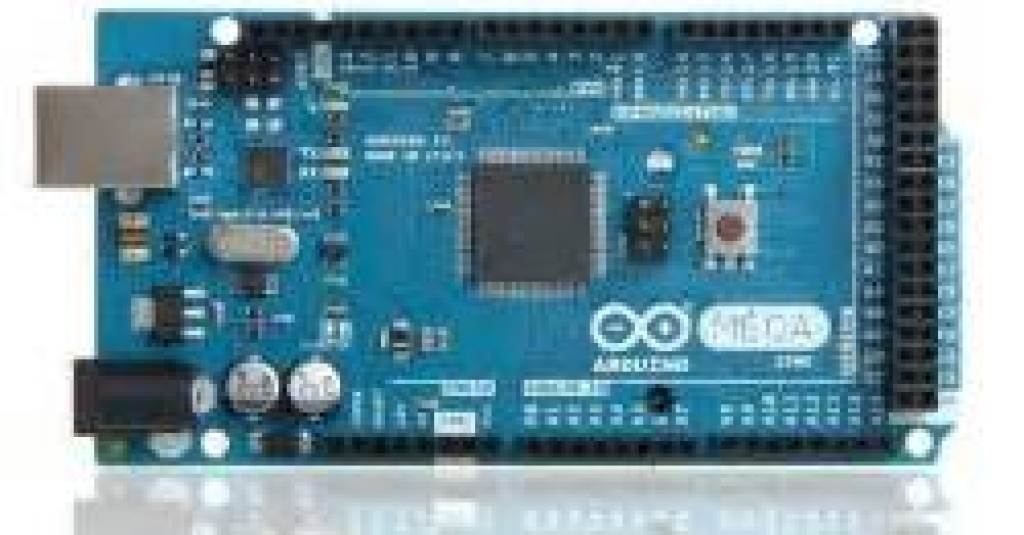

What is the Arduino Mega2560?

The Arduino Mega2560 is an ATmega2560-based microcontroller board that offers a wide range of features and possibilities. It is an enhanced version of the popular Arduino Uno, providing more digital and analog input/output (I/O) pins, larger memory capacity, and additional hardware serial ports. This makes it an ideal choice for projects that require more processing power, memory, or connectivity options.

Feature	Arduino Mega2560
Microcontroller	ATmega2560
Operating Voltage	5V
Input Voltage (recommended)	7-12V
Input Voltage (limits)	6-20V
Digital I/O Pins	54 (of which 15 provide PWM output)
Analog Input Pins	16
DC Current per I/O Pin	20 mA
DC Current for 3.3V Pin	50 mA
Flash Memory	256 KB (8 KB used by bootloader)
SRAM	8 KB
EEPROM	4 KB
Clock Speed	16 MHz
Length	101.52 mm
Width	53.3 mm
Weight	37 g

Why Choose the Arduino Mega2560?

There are several reasons why the Arduino Mega2560 is a popular choice among developers and hobbyists:

1. Increased I/O Pins: With 54 digital I/O pins and 16 analog input pins, the Mega2560 provides ample connectivity options for your projects. This allows you to connect more sensors, actuators, and peripherals without the need for additional hardware.

2. Enhanced Memory: The Mega2560 boasts 256 KB of flash memory, 8 KB of SRAM, and 4 KB of EEPROM. This increased memory capacity enables you to develop more complex sketches and store larger amounts of data.

3. Multiple Hardware Serial Ports: The board features four hardware serial ports (UARTs), which simplifies communication with other devices, such as computers, GPS modules, or wireless modules.

4. Compatibility: The Arduino Mega2560 is compatible with most shields designed for the Arduino Uno, making it easy to expand its functionality and leverage existing resources.

5. Community Support: Arduino has a large and active community of users and developers who contribute libraries, tutorials, and projects. This wealth of resources makes it easier to learn, troubleshoot, and innovate with the Mega2560.

Getting Started with the Arduino Mega2560

Setting Up the Development Environment

To start programming your Arduino Mega2560, you’ll need to set up the Arduino Integrated Development Environment (IDE) on your computer. Follow these steps:

1. Download the Arduino IDE from the official website (https://www.arduino.cc/en/software).
2. Install the IDE on your computer by following the installation wizard.
3. Connect your Arduino Mega2560 to your computer using a USB cable.
4. Launch the Arduino IDE and select “Tools” > “Board” > “Arduino Mega or Mega 2560”.
5. Select the appropriate serial port under “Tools” > “Port”.

Writing Your First Sketch

Now that you have the development environment set up, let’s create a simple sketch to blink the built-in LED on the Arduino Mega2560:

void setup() {
  pinMode(LED_BUILTIN, OUTPUT);
}

void loop() {
  digitalWrite(LED_BUILTIN, HIGH);
  delay(1000);
  digitalWrite(LED_BUILTIN, LOW);
  delay(1000);
}

This sketch does the following:

1. The setup() function is called once when the board starts up. It sets the built-in LED pin as an output using pinMode().
2. The loop() function is called repeatedly after the setup() function. It turns the LED on by setting the pin to HIGH, waits for 1 second using delay(1000), then turns the LED off by setting the pin to LOW, and waits for another second.

To upload the sketch to your Arduino Mega2560:

1. Click the “Verify” button (checkmark icon) to compile the sketch and check for errors.
2. Click the “Upload” button (right arrow icon) to upload the compiled sketch to the board.
3. Once the upload is complete, you should see the built-in LED blinking on and off every second.

Congratulations! You’ve just written and uploaded your first Arduino sketch.

Exploring the Arduino Mega2560’s Features

Digital I/O Pins

The Arduino Mega2560 has 54 digital I/O pins, labeled 0 to 53. These pins can be used as inputs or outputs, depending on your needs. To configure a pin as an input or output, use the pinMode() function in your sketch:

pinMode(pin, INPUT);  // Set pin as an input
pinMode(pin, OUTPUT); // Set pin as an output

To read the state of an input pin, use the digitalRead() function, which returns HIGH or LOW:

int value = digitalRead(pin);

To set the state of an output pin, use the digitalWrite() function:

digitalWrite(pin, HIGH); // Set pin to HIGH (5V)
digitalWrite(pin, LOW);  // Set pin to LOW (0V)

Analog Input Pins

The Mega2560 has 16 analog input pins, labeled A0 to A15. These pins can read analog voltages between 0V and 5V, with a resolution of 10 bits (0 to 1023). To read the value of an analog pin, use the analogRead() function:

int value = analogRead(pin);

The returned value will be in the range of 0 to 1023, proportional to the input voltage.

PWM Output Pins

Among the 54 digital I/O pins, 15 can be used as PWM (Pulse Width Modulation) outputs. These pins are marked with a tilde (~) and can be used to generate analog-like signals. To set the PWM value of a pin, use the analogWrite() function:

analogWrite(pin, value);

The value parameter should be between 0 (always off) and 255 (always on).

Hardware Serial Ports

The Arduino Mega2560 has four hardware serial ports: Serial, Serial1, Serial2, and Serial3. These ports allow communication with other devices using the UART protocol. To use a hardware serial port, create an instance of the HardwareSerial class and call its begin() function:

Serial.begin(9600);  // Initialize Serial port with a baud rate of 9600
Serial1.begin(9600); // Initialize Serial1 port with a baud rate of 9600

To send data over a serial port, use the print() or println() functions:

Serial.print("Hello, world!");
Serial.println(value);

To receive data, use the available() and read() functions:

if (Serial.available()) {
  int data = Serial.read();
  // Process the received data
}

Arduino Mega2560 Projects and Applications

The Arduino Mega2560’s versatility and power make it suitable for a wide range of projects and applications. Here are some examples:

Home Automation

Use the Mega2560 to create a smart home system that controls lights, appliances, and security devices. With its numerous I/O pins, the board can interface with various sensors and actuators, enabling you to monitor and control your home remotely.

Robotics

The Arduino Mega2560 is a popular choice for robotics projects due to its enhanced memory and I/O capabilities. You can use it to control motors, servos, and sensors, allowing you to create autonomous or remote-controlled robots for various purposes, such as exploration, transportation, or entertainment.

Data Logging

With its large memory capacity and multiple serial ports, the Mega2560 is well-suited for data logging applications. You can connect various sensors to the board and use it to collect, store, and transmit data for analysis or visualization.

Audio and Visual Effects

The PWM output pins on the Mega2560 can be used to create interesting audio and visual effects. For example, you can control LED strips, create music with buzzers or speakers, or generate patterns on a matrix display.

Internet of Things (IoT)

Combine the Arduino Mega2560 with network modules, such as Ethernet or Wi-Fi shields, to create IoT devices that can communicate with other devices or cloud services. This enables you to develop smart sensors, remote monitoring systems, or interactive installations that can be accessed and controlled over the internet.

Frequently Asked Questions (FAQ)

1. Q: What is the difference between the Arduino Mega2560 and the Arduino Uno?
   A: The main differences are:
2. The Mega2560 has more I/O pins (54 digital, 16 analog) compared to the Uno (14 digital, 6 analog).
3. The Mega2560 has larger memory (256 KB flash, 8 KB SRAM, 4 KB EEPROM) than the Uno (32 KB flash, 2 KB SRAM, 1 KB EEPROM).

4. The Mega2560 has four hardware serial ports, while the Uno has only one.

5. Q: Can I use Arduino Uno shields with the Arduino Mega2560?
   A: Yes, most shields designed for the Arduino Uno are compatible with the Mega2560. However, be sure to check the shield’s documentation for any specific requirements or limitations.

6. Q: How do I power the Arduino Mega2560?
   A: You can power the Mega2560 using a USB cable connected to your computer or an external power supply (7-12V) connected to the board’s power jack. The board can also be powered using the VIN pin when using an external power source.

7. Q: What is the maximum current that each I/O pin can provide?
   A: Each I/O pin can provide or receive up to 20 mA of current. However, it is recommended to keep the current below this limit to avoid damaging the board.

8. Q: Can I program the Arduino Mega2560 using languages other than Arduino’s language?
   A: Yes, you can use other programming languages, such as C, C++, or Python, to program the Mega2560. However, you’ll need to use the appropriate tools and libraries for your chosen language.

Conclusion

The Arduino Mega2560 is a powerful and versatile microcontroller board that combines sexy looks with beastly performance. Its enhanced features, including increased I/O pins, larger memory capacity, and multiple hardware serial ports, make it an excellent choice for a wide range of projects and applications.

Whether you’re a beginner or an experienced developer, the Arduino Mega2560 offers a cute and approachable way to bring your ideas to life. With its extensive community support, comprehensive documentation, and a vast ecosystem of libraries and shields, the Mega2560 is the perfect companion for your electronic adventures.

So, embrace the cute and sexy side of microcontrollers and unleash your creativity with the Arduino Mega2560. Happy tinkering!
